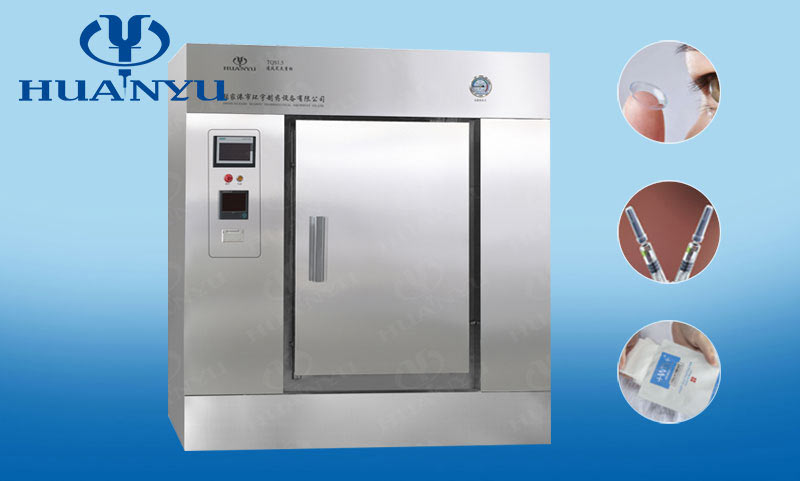

TQS/TYS Series Ventilation Autoclave Introduction:
TQS/TYS series ventilation autoclave is used in prefilled glass or palstic syringes, retort pouch packed mask and wipes, contact lenses, blood bags.
The autoclave adopts mixed clean steam and air as sterilization medium. The sterilization equipment pressure balance, back pressure protection can be well controlled by this way. So sterilization equipment is used for the items that need to keep shape, sealed in the same time of sterilization. Force convection fan and air guide plate structure, make the chamber non saturated steam well mixed to ensure the sterilization temperature evenness.
The autoclave are equipped with cooling coil. Product cooling and drying is achieved by the condensation of the mixed gas inside the chamber through getting the cooling water into the coil. Product is cooled by the cold air and the water on the surface of the product evaporates in the same time. To realize the purpose of cooling and drying finally. The autoclave machine could also be equipped with hot air drying function for some products that have high requirements for the drying effect.
Ventilation Autoclave Structure:
The main-body of this ventilation autoclave adopts orizontal rectangular structure. with chamber made by 304 or 316L stainless steel material. The autoclave is covered by the external plate that is made by draw-benched stainless steel. And the equipment is accessorized with standard GMP verification interface. Industrial control system PLC + HMI has a standard “user management, data storage, process management” function. The sterilization process can be traced back, with independent data recording device and Industrlal control system to ensure data accuracy.
Ventilation Autoclave Parameter Table:
Main Parameter / Model | TQS-1.0 | TQS-1.5 | TQS-2.0 | TQS-2.5 | TQS-3.0 | TQS-4.0 | TQS-5.0 |
Chamber Measurement | 1050×910×1130 | 1300×1000×1200 | 1700×1000×1200 | 2100×1000×1200 | 2500×1000×1200 | 2200×1300×1400 | 2600×1300×1400 |
External Measurement | 1300×2000×2200 | 1600×2000×2200 | 2000×2000×2200 | 2400×2000×2200 | 2820×2000×2200 | 2800×2400×2300 | 3000×2400×2500 |
Steam | 45kg | 50kg | 80kg | 100kg | 120kg | 150kg | 200kg |
Colling Water | 800kg | 1000kg | 1200kg | 1500kg | 1800kg | 2200kg | 2700kg |
Compressed Air | 1m3 | 1.5m3 | 2m3 | 2.5m3 | 3.0m3 | 4.0m3 | 5.0m3 |
Power | 3.5KW | 3.5KW | 4.5KW | 5.5KW | 5.5KW | 7.5KW | 7.5KW |
Net Weight | 1700kg | 2000kg | 2200kg | 2500kg | 3000kg | 3500kg | 4000kg |
Design Pressure | 0.245MPA | ||||||
Design Temperature | 139℃ |
