Retort Bag Packaging Sterilizer

Widely used in masks, wipes and etc.
Retort Bag Packaging Sterilizer

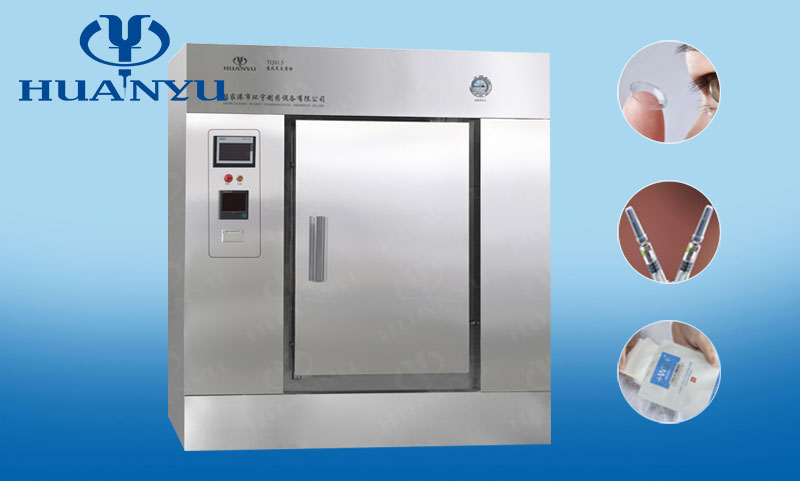

TQS/TYS Series

Ventilation Sterilizer
Ventilation Sterilizer
Nice Chamber Structure and Finish
Nice chamber finish, and the equipment is with firm structure, which could stamped by proficient 3 bars, and each autoclave is detected by X ray, and certified by the government, which could fully meet the standard of pressure vessel. Good quality silicon insulation layer is surrounded outside of the chamber to reduce the heat radiation on the surface of the machine.
Full Automatic Door
The equipment is equipped with full automatic door, and it can also be made to double door structure, which could achieve the isolation of the operation area to the sterile area.
Stainless Steel Piping
Stainless steel pipelines are used to avoid corrosion that may lead to secondary contamination of the sterilized loads.
Sterilizer
All Round Flexible
Custom Made Service
The equipment structure and program could be custom made, including:
Equipment internal measurement and pipeline location could be custom made according to the measurement and quantity of the loads for sterilization.
Equipment external measurement could be narrow designed according to the sterilization room measurement.
Door structure choice: motor door or sliding door.
Door open direction.
Steam generator could be accessorized according to user’s requirement.
Sterilization program could be custom made according to user’s sterilization craft requirement.
Equipment configuration and etc.
Sterilize Status Classifications
Superheated water sterilizer could be designed to three types of sterilize status according to different products:
Sterilizer
Sterilization Medium
Movement Classifications
Sterilization Features:
Steam and Air Mixture Sterilization:
This series ventilation sterilizer adopts clean steam and air mixing sterilization process mode, pressure balance and back pressure protection of equipment and sterilization loads can be well controlled, this equipment is widely and well used for the items that need to keep shape and sealed in the same time of sterilization.
Good Sterilization Temperature Evenness:
The forced convection fan and air guide plate structure makes the chamber non saturated steam mixed well to ensure the sterilization temperature uniformity.
Optional Air Drying Function:
For some products that have high requirements for the drying effect, the machine could be equipped with additional hot air drying function.
Precise Control System
Intelligent temperature sensor, pressure transmitter and pneumatic valve ensure chamber pressure, temperature detecting and control.
Load Traceability
All data reports and curves could be recorded on SD card in non modifiable format, and could be traced conveniently.
SQS Sterilizer
Sterilizer Safety Guide
The doors are designed with independent mechanical and digital safety features
Safety valves are installed to prevent pressure exceeds the allowed limit Emergency stop button is installed for immediate cycle shut off under emergency.

1. The door is not allowed to be opened when the chamber is pressurized
2. The cycle is not allowed to started when the door is not sealed.
3. Door process will automatically stop if obstruction is detected
4. The door cannot be unsealed until the chamber pressure reach room pressure
5. Under double door structure, double door interlock to prevent both doors open in the same time.
Ventilation Sterilizer Summary
This series ventilation sterilizer adopts mixed clean steam and air as sterilization medium, equipment and product pressure balance and back pressure protection can be well controlled by this way, so this equipment is widely used for the items that need to keep shape and sealed in the same time of sterilization. Force convection fan and air guide plate structure make the chamber non saturated steam well mixed to ensure the sterilization temperature evenness. And the equipment is equipped with cooling coil. Product cooling and drying is achieved by the condensation of the mixed gas inside the chamber through getting the cooling water into the coil. Product is cooled by the cold air, and the water on the surface of the product evaporates in the same time, to realize the purpose of cooling and drying finally. The machine could also be equipped with hot air drying function for some products that have high requirements for the drying effect.
Ventilation Sterilizer Structure
The main-body of this series of ventilation sterilizer adopts orizontal rectangular structure, with chamber made by 304 or 316L stainless steel material, and covered by the external plate that is made by draw-benched stainless steel. And the equipment is accessorized with standard GMP verification interface. Industrial control system PLC + HMI has a standard "user management, data storage, process management" function, the sterilization process can be traced back, with independent data recording device and Industrlal control system to ensure data accuracy.

TQS/TYS Series Ventilation Sterilizer Parameter Table

Main paramater Model TQS-1.0 TQS-1.5 TQS-2.0 TQS-2.5 TQS-3.0 TQS-4.0 TQS-5.0
Chamber measurement 1050*910*1130 1300*1000*1200 1700*1000*1200 2100*1000*1200 2500*1000*1200 2200*1300*1400 2600*1300*1400
External measurement 1300*2000*2200 1600*2000*2200 2000*2000*2200 2400*2000*2200 2820*2000*2200 2800*2400*2300 3000*2400*2500
Steam 45 50 80 100 120 150 200
Cooling water 800 1000 1200 1500 1800 2200 2700
Compressed air 1 1.5 2 2.5 3 4 5
Power 3.5 3.5 4.5 5.5 5.5 7.5 7.5
Net weight 1700 2000 2200 2500 3000 3500 4000
Design pressure 0.245 0.245 0.245 0.245 0.245 0.245 0.245
Design temperature 139 139 139 139 139 139 139

Huanyu Sterilizer Video

Retort bag packaging sterilizer is widely used in masks, wipes and etc.
