KQS/KYS Series Rapid Cooling Sterilizer Introduction:

KQS/KYS series rapid cooling sterilizer is widely used in the pharmaceutical, hospital preparations, food and other industries. The sterilizer is widely used in the high-temperature sterilization and rapid cooling operation of all kinds of sealed heat-resistant glass bottles or oral liquid packed infusion. This pulse vacuum sterilizer adopts saturated steam(or pure steam) as sterilization medium. The sterilizer have product requirement for the equipment capacity less than 5 m3,and sterilization temperature between 105℃ and 126℃.

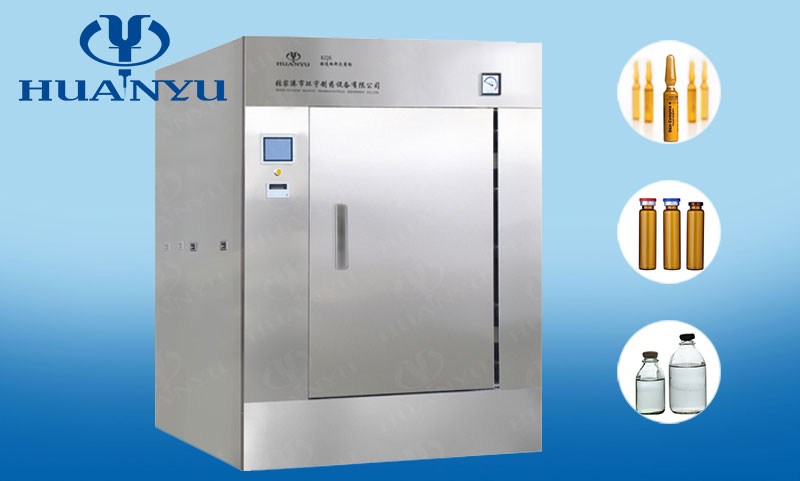

KYS Series Rapid Cooling Sterilizer


Rapid Cooling Sterilizer Structure:

This sterilization equipment daopts horizontal rectangular structure. 304 or 316L stainless steel chamber. The rapid cooling sterilizer covered by the plate made by draw-benched stainless steel. It is accessorized with standard GMP verification interface. Industrial control system PLC + Html has standard “user management,data storage,process management” function. The sterilization process can be traced back. With independent data recording device and industrial control system to ensure data accuracy. Temperature time and F0 dual control meet the requirement of pharmacopoeia.

KQS/KYS Series Fast Cooling Sterilizer Parameter:

Main Parameter / Model KQS1.2 KQS1.5 KQS2.0 KQS2.5 KQS3.0 KQS5.0
Capacity(bottle) 500ml 500 600 800 1000 1200 2000
250ml 800 1000 1500 1900 2300 3800
100ml 1600 2000 3000 3800 4500 7000
Chamber Measurement 1500×680×1180 1900×680×1180 1700×1000×1200 2100×1000×1200 2500×1000×1200 4200×1000×1200
External Measurement 1800×1420×2150 2200×1420×2150 2000×1880×2200 2400×1880×2200 2800×1880×2200 4500×1880×2200
Steam 50kg 60kg 80kg 105kg 120kg 250kg
Washing Air 800kg 1000kg 1500kg 1800kg 2000kg 2300kg
Compressed Air 1.2m3 1.5m3 2m3 2.5m3 3.0m3 5.0m3
Power 3KW 3KW 5.5KW 5.5KW 6KW 8KW
Net Weight 1900kg 2000kg 2500kg 3000kg 3400kg 4200kg
Design Pressure 0.245MPA
Design Temperature 139℃
